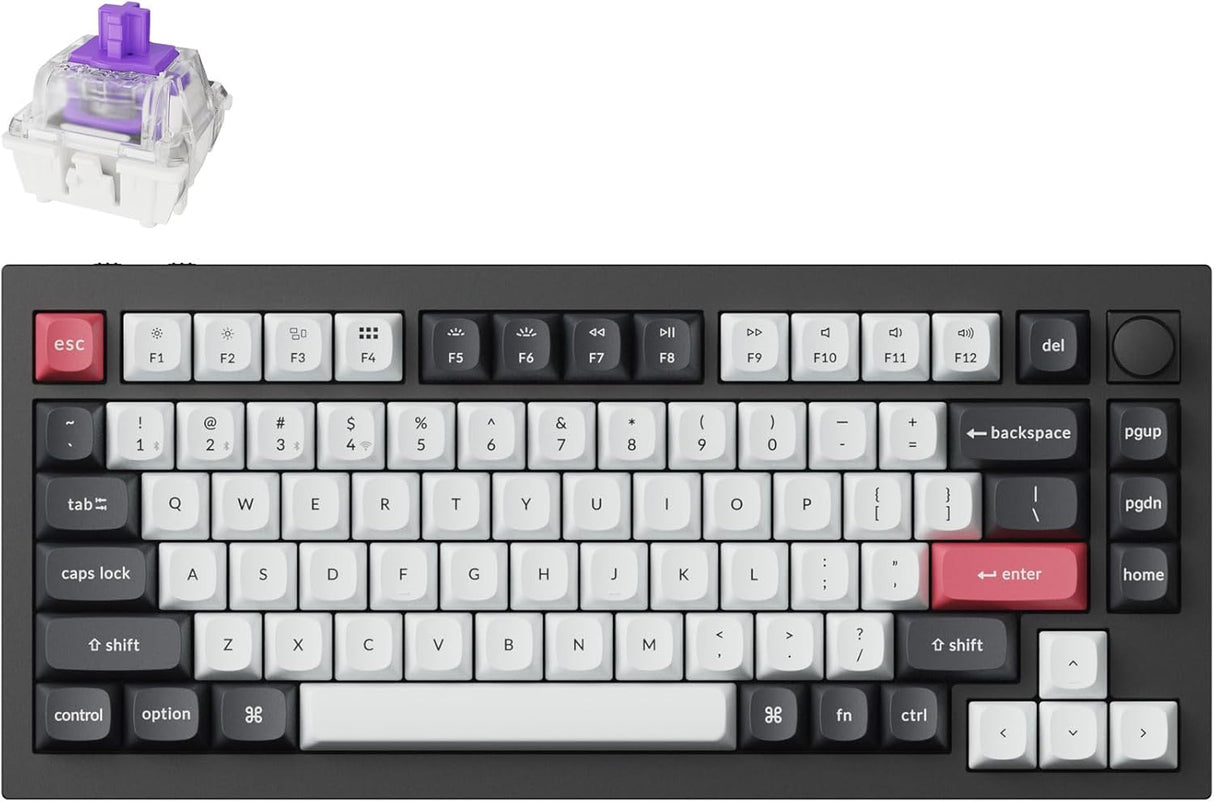

Keychron Q1 HE QMK Wireless Custom Keyboard 1.2 kg

$330.00
Shipping calculated at checkout.

The Q1 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.



Product Features

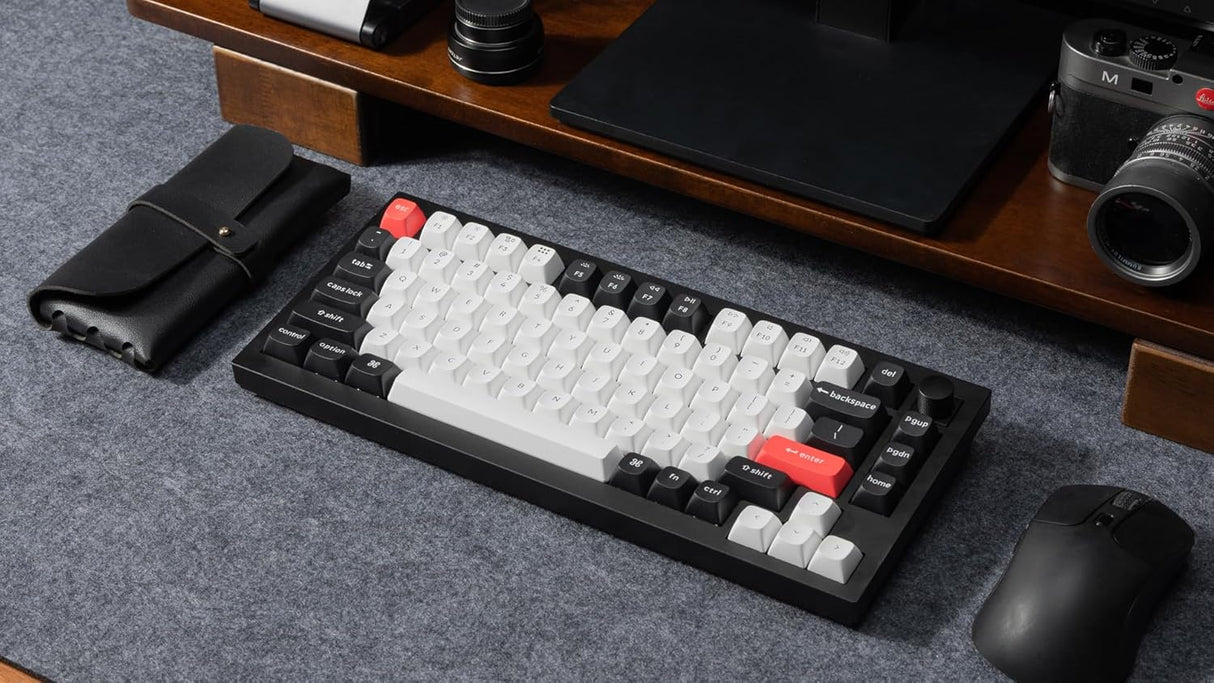

Keychron Q1 HE - Keychron Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

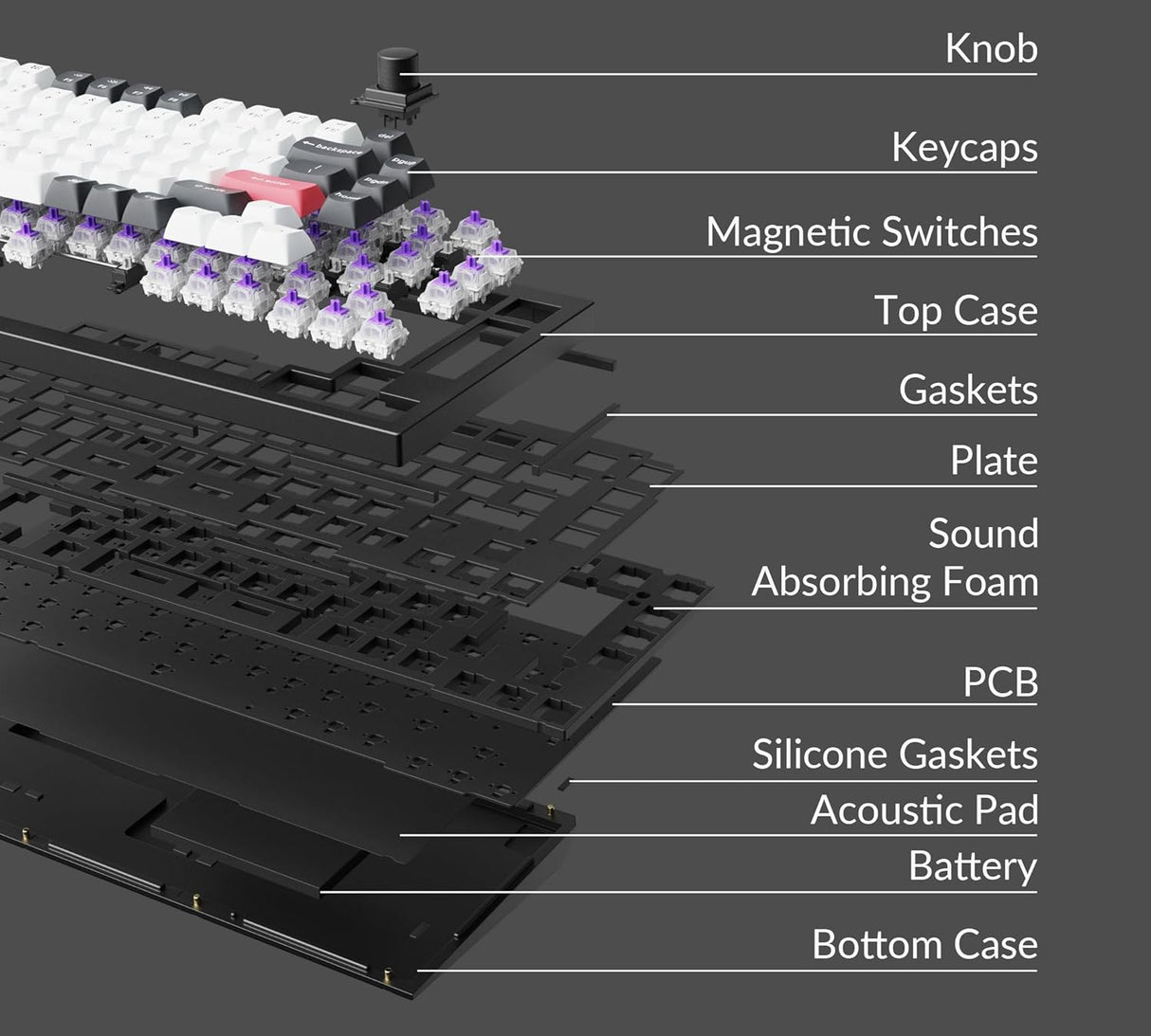

A Refined Piece Of Metal Art - The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

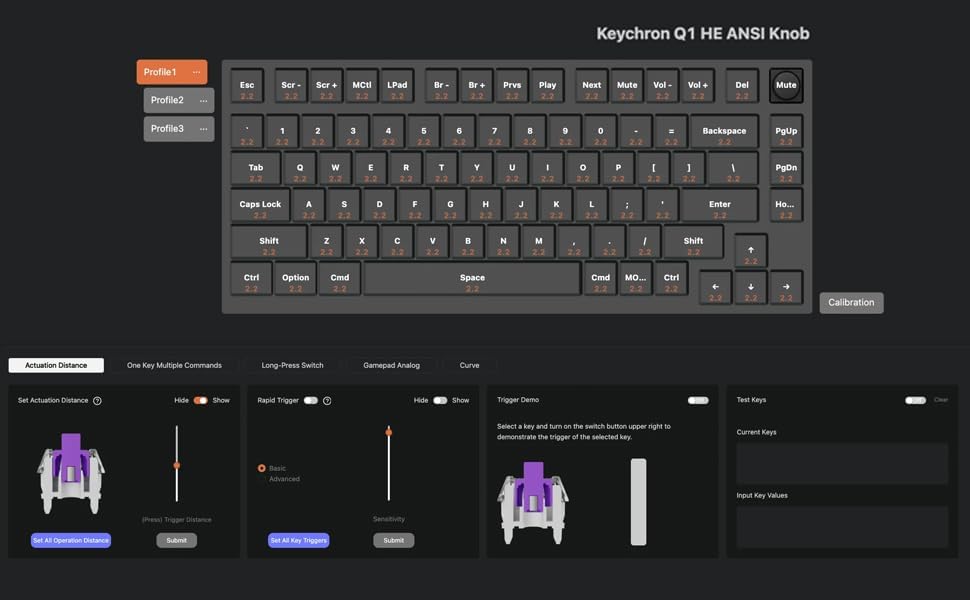

Programmable Knob - With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

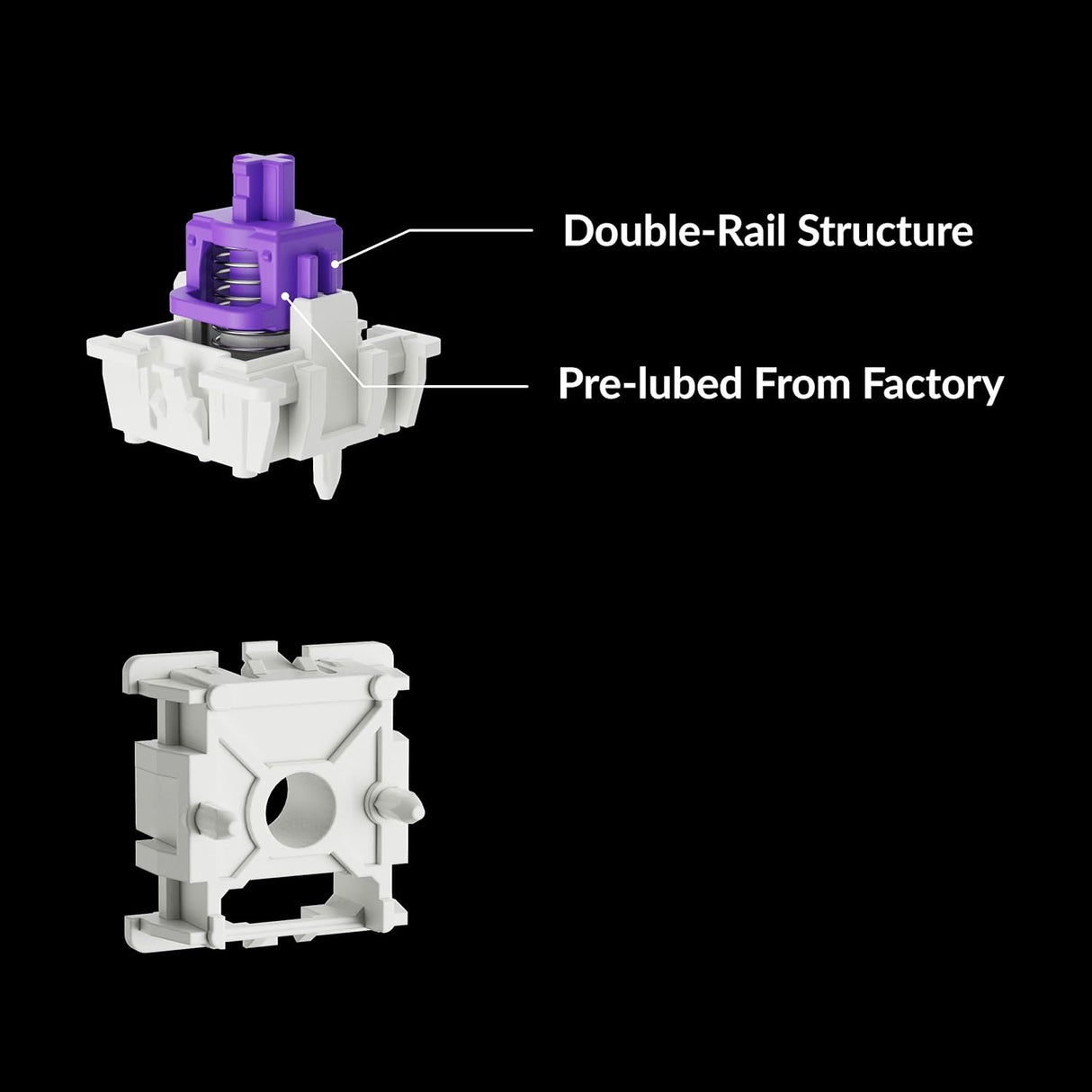

Gateron Double-Rail Magnetic Hall Effect Switches - Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation. With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

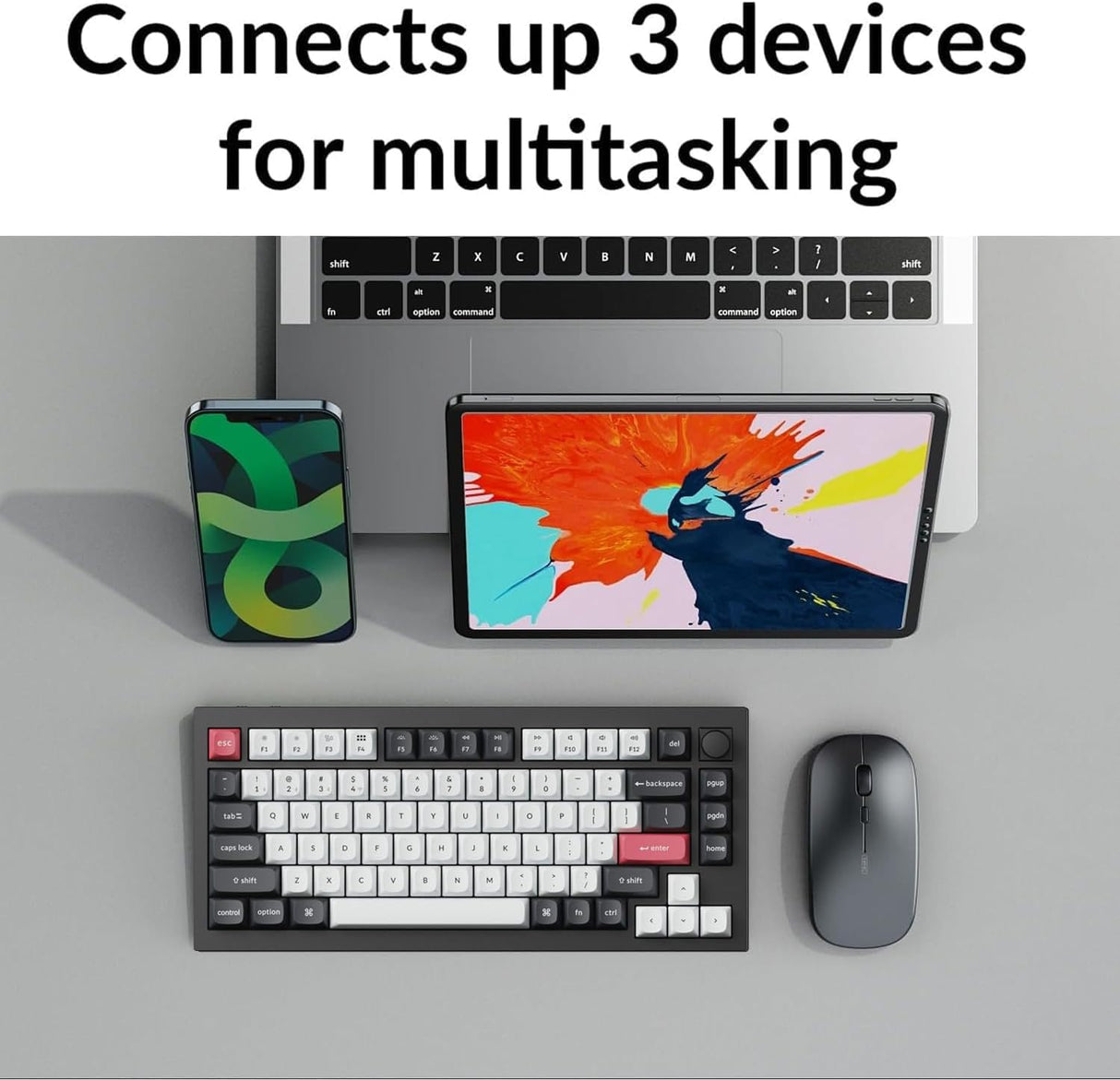

2.4 GHz & Bluetooth Connection - Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.

South-facing RGB LED Lights - The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard. The Q1 HE can last up to 100 hours (at lowest brightness) with a 4000 mAh big battery, which is one of the biggest in mechanical keyboards.

Compatibility

  • Windows/Android and Mac/IOS

What's In The Box

  • Keychron Q1 HE
  • Type A to Type C Cable
  • Type C to Type C Cable
  • Extension Adapter For Receiver
  • Type A 2.4 GHz Receiver
  • Switch Puller & Keycap Puller
  • Screwdriver
  • Hex Key

Warranty

1 Year By Convergent Systems (S) Pte. Ltd.

Delivery and Shipping

  • Non-Campaign Periods: Delivery within 1-3 business days.
  • Campaign Periods: Delivery within 3-5 business days.
  • Out of Stock: If any items are out of stock, we will contact you through WhatsApp so please remain contactable!

For any questions, please contact us through WhatsApp!

Specifications

Width 145 mm

Length 327.5 mm

Front Height 22.6 mm (without keycaps)

Back Height 35.8 mm (without keycaps)

Feet Height 2.4 mm

Angle 5.2°

Weight 1735 g ± 10 g (Fully Assembled version)

Body Material Aluminum

Plate Material Aluminum

Polling Rate 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)

N-Key Rollover (NKRO) Yes for both wireless and
wired modes

Rapid Trigger Yes

Adjustable Actuation Points 0.2 - 3.8 mm

Dynamic Keystrokes 4-in-1 action keys

Sensitivity 0.1 mm

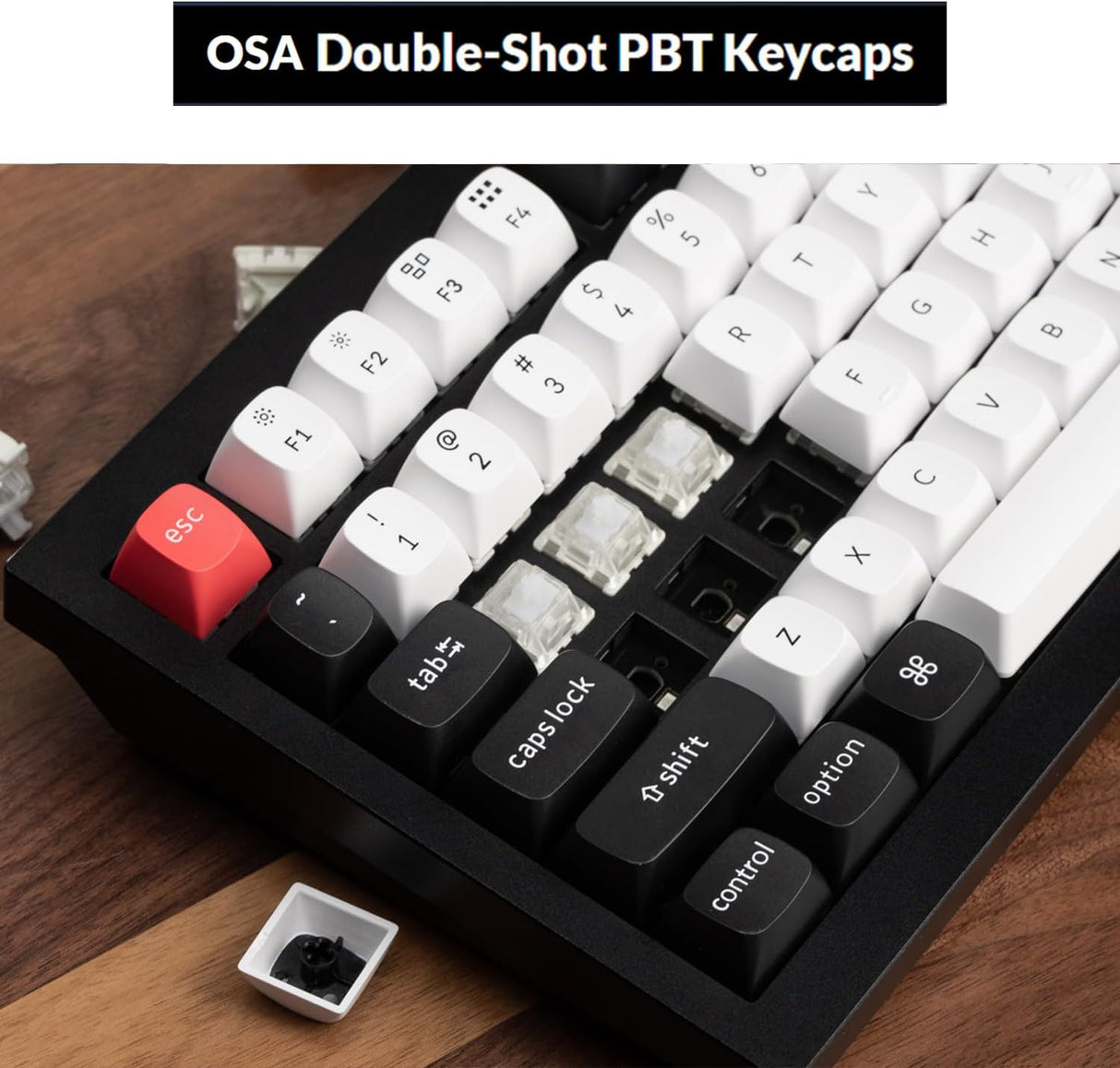

Keycap OSA Double-shot keycaps, not shine-through

MCU ARM Cortex-M4 32-bit STM32F402RC (256KB
Flash)

Backlight South-facing RGB LED

Switch Gateron double-rail magnetic switch

Hot-swappable Support Yes, compatible with Gateron double-rail magnetic switch only.

Stabilizer Screw-in PCB stabilizer

Cable Type-C cable (1.8 m) + Type-A to Type-C adapter

Connectivity 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version 5.1

Bluetooth Device Name Keychron Q1 HE

Battery 4000 mAh Rechargeable li-polymer battery

Operating Environment -10 to 50℃

Wireless Working Time (Backlit off) Up to 100 hours
